First Post for a DIY CNC Machine

I have been wanting to have access to a CNC machine for milling materials. There are several good options available however I think it would be interesting to design and develop one from scratch while also it being cheaper.


I need to flesh out the requirements for this project however at a high level the CNC machine should be able to:

  • Mill aluminium parts at decent speeds
  • Have a cost of ~$1500 CAD
  • Be compact to fit in my laundry or garage


While looking online there are several good designs that hobbyists use to create their CNC mills.

Comments

Post a Comment

Popular posts from this blog

AS5048A Magnetic Encoder and STM32

This past week I began to write the controller firmware - mainly playing with the AS5048A angular position sensor from AMS. Here is the datasheet .  This sensor will be used to get the rotor position and then compute the resulting electrical angle for the Clarke/Park transforms and also it will be used to find rotor speed for the out loop.  I will be using an STM32F446 board to run the loop as it has a high clock speed. The AS5048A sends its measurements over SPI. Below is the read package sent from the sensor: We get 14 bits of position data - aka 16384 ticks per revolution, or a resolution of 0.0219 degrees. I wrote this read() function that sends the SPI command package and reads the resulting response: uint16_t read(uint16_t registerAddress) { uint16_t command = 0x4000; // PAR=0 R/W=R uint8_t RxBuff[2]; uint8_t TxBuff[2]; command = command | registerAddress; command |= (uint16_t) (spiCalcEvenParity(command) << 0xF); TxBuff[0] = command >> 8; TxBuff[1] = co
Read more

Pseudo-FOC Controller - Simulations and Inital

As a part of my FOC controller, I am developing an intermediate project - the  Pseudo-FOC Controller. This post will introduce the theory, simulations, and an initial prototype of the project. At its core, this controller uses sinusoidal commutation, which is being implemented through the inverse Park and Clarke transforms. Project Goals The goals of this project are listed below: Control torque, speed, and position of a PMSM - specifically for gimbal and drone grade motors Develop a PCB for the controller Develop auto-tuning algorithms for controller gains Develop an auto-calibration sequence for the rotor position sensor BLDC vs PMSM A key point of confusion is motor classification of permanent magnet machines - specifically between Brushless DC Motors  (BLDCs) and Permanent Magnet Synchronous Motors (PMSMs). In my experience/readings, the differing factors is in their back-emf profile: BLDCs having a trapezoidal BEMF and PMSMs having a sinusoidal BEMF. It is also important to note t
Read more

Revised CNC Mill Design

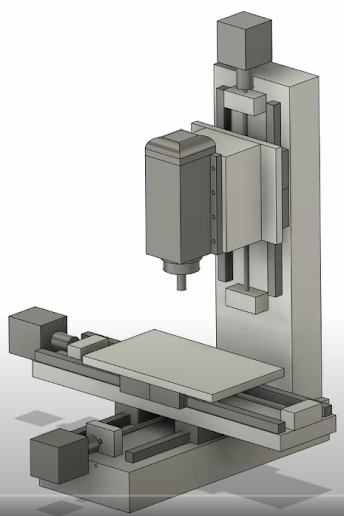

In the last post I fixed some of the clearance and parts issues for the x-axis assembly for the CNC mill. I since applied these same changes to all axes and dialed in most of the components. Here is a image of the full system:  Version 2 of the CNC mill design. The entire assembly weighs 48 kg which is on the lighter side. To fix this I plan on casting epoxy granite around the y-axis base to add both mass and damping properties.  The work area is: X travel: 240 mm Y travel: 180 mm Z travel: 110 mm Parts Each of the axes use SFU1204 ball screws, the only difference being the length: 500 mm on x, 400 mm on y, and 300 mm on z. Similar to this, all axes use HGR25 linear rails (a pair) and 4 HGH25-CA linear bearings (2 per rail). Again the only difference is the lengths: 500 mm on x, 400 mm on y, and 300 mm on z. For the spindle I plan on using a 1.5 kW 110 V air cooled spindle and a VFD ( found here ). I modelled the dimensions in Solidworks (as seen above). The motors are just NEMA 27s, h
